Roll Mixing Machine Zigma

ZIGMA MACHINERY

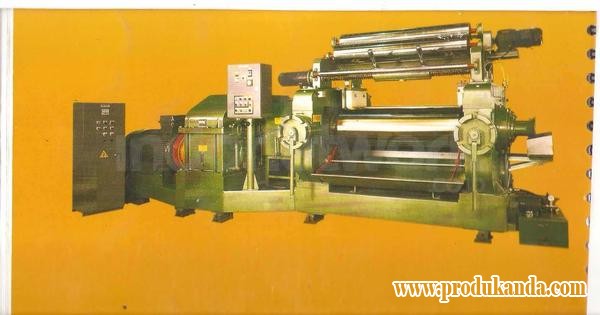

ZIGMA (Taiwan) - Model:  HL 1440
2 Rolls MIXING ROLL  MILLS. (For Rubber Products)
Size : 14" (Dia.) x 40" (L) With  Yaskawa (Japan) Magnetic Brake System.

GENERAL DETAIL SPECIFICATIONS:

MODEL: HL 1440   -  Size :  14" (Dia.) x 40" (L) 2 Rolls MIXING ROLL MILLS.



(1). Type: Two roll of horizontal, foundation is unity, add lever

      controller 10 units.
(2). Size: 14 inches dia. x 40 inches length.
(3). Roll R.P.M.: Front -- 12, Rear -- 12.
(4). Main Motor: 50 HP/45KW/8P/380V/50HZ. Brand : TECO ( Taiwan )
(5). Roll Position:

   5.1). Material: Cold rolling, inside could heating and cooling.

   5.2). Hardness: HS 70 (toll. plus or minus 2 degrees).

          Thickness: 12 mm surface to and process by grind.

   5.3). Cooling system: Hermetically sealed pressure rotary joint,

           ducts and manual valve attached to the gangway.

(6). Bearing of roll:

   6.1). Use bearing structure.

   6.2). Lubricated of bearing by 1/2 HP pump motor, automatic

           circulate, oil pump box setup line, inlet place have 4

           scope could look and adjust.

  (7). Gear box:

   7.1). Use one input shift and one output shift to drive.

   7.2). Lubricated: Oil bathe itself plash type.

 (8). Diaphragm: By hand adjuster, get in touch with surface of

      roll is MC-NYLON material.

 (9). Roll gap adjust: Hand operate one side drive.

 (10). Retrieve material plate: Stainless steel #304.

 (11). Emergency Brake: Yaskawa (Japan), Type: QB SS 806C1/ 200 V

    11.1). Bottom switch hand press --- 4 fixed.

    11.2). Emergency rope switch -----  2 fixed.

    11.3). Emergency stop (Max.) ----- 90 degrees

    11.4). Kick Bar and Kick Plate

 (12). Protective shield:

    12.1). In the gear drive of roll.

    12.2). In coupling of motor and gear box.

 (13). Cutting: Fixed operate front, could change cutter haft ---

        2 unit (cutter-Bakelite)

 (14). Electrical Equipment:

    14.1). Power electric: 380V, 50HZ, 3 Phase.

    14.2). Control electric: 220V, 50HZ, 1 Phase.

    14.3). Could return inch-move operate.

 (15). Spare Parts:

    15.1). Tools box and operate instruction.

    15.2). Coupling of rubber buffer -- 6 pcs.

    15.3). Safety Braking Plate 10 Pcs

We are one of the reputed manufacturers and suppliers of Rubber Mixing Mill.
These products are made from supreme quality raw material and latest technology by our skilled professionals.
Owing to its heavy loading capacity, these machines are used extensively in multiple sectors for compounding,
sheeting, warming of various grades of rubbers. Clients can avail these products from us at market leading prices.
Our rubber mixing mills are widely appreciated for features like. These are provided with chilled cast iron rolls,
leaded bronze bushes lined in cast iron housings and bull gear of cast iron/ steel.
The mill also has pinion & friction gears of steel,
both side gear covers, tray, and safety trip rod, with M.S. fabricated common base plate with reduction gear box.
